Within 7 working days after receiving full payment
1.auto height control
2.for gas and plasma cutting
3.smart and precision
4. capacitance or arc voltage height detector
auto height control
1. Stepper motor instead of conventional DC motor ,makes it faster and smoother in addition to significantly extended service life.
2. Directly displaying the height of cutting nozzle in capacitance height control mode
3. Integration of mechanical lifting device and height controller
4. Circuit uses SMD technology without any adjustable devices; all digital control technology ensures high product reliability.
5.The feature of "one-keystroke height calibration" guarantees that in any circumstances, the user only needs to press one key to calibrate the absolute height measurement and achieve linear height measurement.
6. The shell uses tamper-proof, waterproof and moisture-proof aluminum box sealed design, particularly applicable to the severe environment
7.The interface is simple and easy to control. It is suitable for any flame cutting and plasma cutting CNC system or using alone.
8. Asynchronous communication function enables connection with CNC system and facilitates parameter setting, automatic/manual control, taper angle transition control and data exchange
9. 100% test before shipping
Major Technical Specifications
DC 24V±2 V
17/23 HS series of stepper motors
Manual adjustment range
Automatic height control range
3 -30 mm
Adjusting speed of automatic height control
3000 mm/min (30 ° slope)
Dimensions of box body
(155 × 87 × 71) mm
Total weight of capacitance height control
Total weight of arc voltage height control

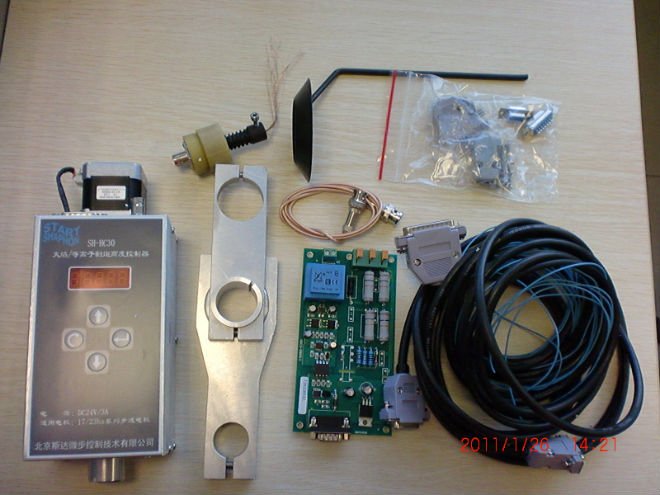

capacitance height detector and arc voltage height detector
