cnc plasma controller

FOB Reference Price:Get Latest Price
US $750-800 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Beijing, China (Mainland)
Brand Name:
start shaphon
Model Number:
cnc cutting controller SH-2200H
cnc cutting controller:
controller
Supply Ability
Supply Ability:
20000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
1.Microstep carton
2.Weight:7.2KG
3.Size:50*43*26mm
Port
TIANJIN/ BEIJING OR others
Lead Time :
1-2 working day after received payment

Specifications

cnc plasma controller
cnc cutting controller

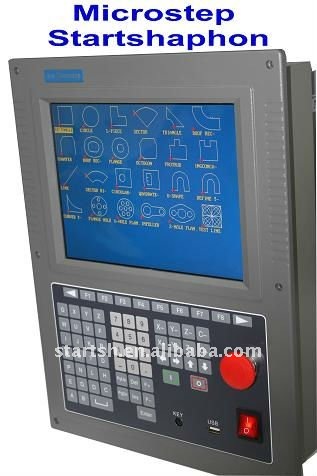

10.4"color display screen ,
integrated keyboard panel.

cnc plasma controller

SH-2200H flame/plasma CNC cutting controller is specially designed for gantry cutting machines.



 It adopts industrial ARM chip, superlarge scale integrated high-speed hardware interpolator, low consumption, low heat, no need to compulsive heat dissipation, reliable and steady hardware.



Rich software functions, freely change between flame and plasma, adjust preheat delay, piercing troch up and down delay, piercing delay and so on according to different steel plates and machines.



It has following functions, steel plate alignment, kerf compensation, broken point recover, original track back to cut, transfer to cuting, start from random program, piercing point choice, torch random position to adjust and choose, prerun outline, spin parts, mirror, array, zoom in scale and so on.



Cutting program preprocess function, additional electronic gear adjustment, inflexion point auto speedup and speeddown, equal different up and down.



Operating Interface in Chinese and English, dynamic graphic display, dynamic imitating cutting track, real-time display cutitng state and input/output state.

There is a standard graphic library and simple nesting function.

Convenient operation for users, manual program by in-built or external keyboard It's compatible with IBE, FASTCAM and other CAD/CAM nesting software. U disk reads program and software upgrade. Handheld remote controller is optional. It has functions of moving, positioning, speedup, speeddown, cutting processing and so on.

Technical Parameters

Linked Axis No.2 axis,4 axis is available or random X/Y dual driveMax.

Speed 24000mm/min

Pulse Equivalent/  electroni gear numerator/denominator setup scope(1—65535)

Smallest Programm Unit 0.001mmI/O Control/ 16 optoelectronic input,14 optoelectronic outputStorage Space: 64-512MExtension Port USB,RS232,standard keyboardDisplay Resolution/ 10.4”,640×480,,32 truecolorController Dimension/ (300×204×93)mmWorking Temperature/ 0°C ~ 55°C   Storage Temperature/ -40°C ~ 60°CSH-2200H~ small.JPG
